VARIOKIT Engineering Construction Kit in action
-

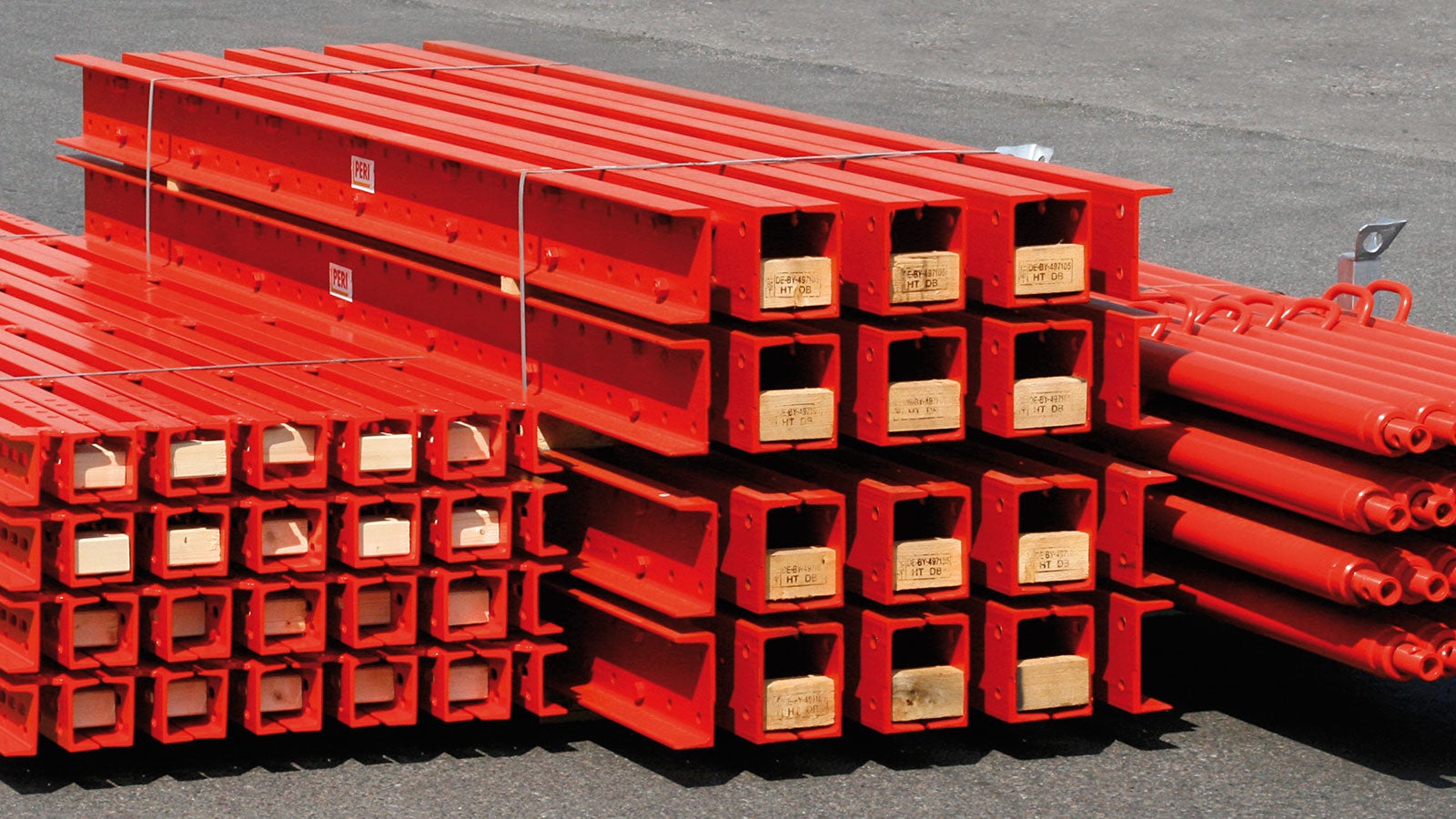

![The core components of the VARIOKIT engineering construction kit: steel walers, climbing rails and heavy-duty spindles.]( "VARIOKIT Engineering Construction Kit")
Minimized assembly timeFast working operations due to fitting pin connections and simple adaptation with spindles.
-

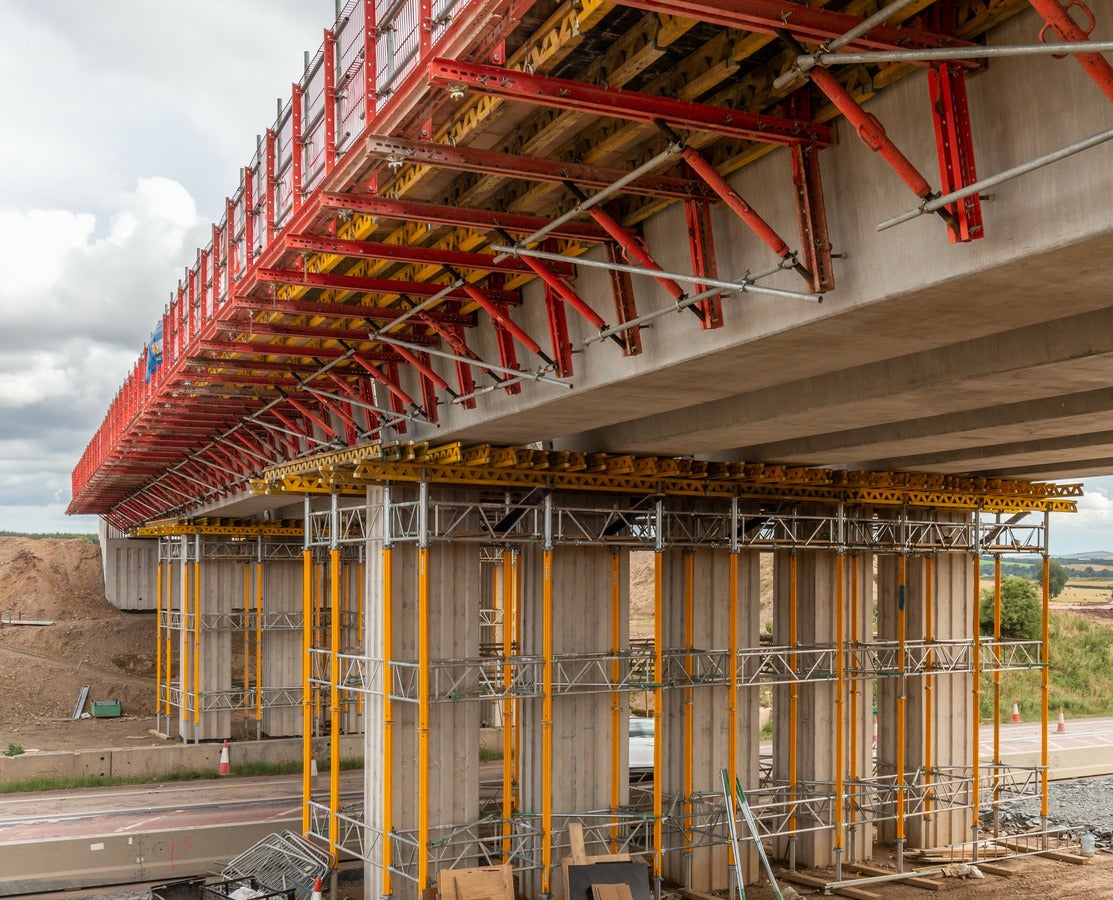

![This supporting formwork solution consisting of VARIOKIT system components ensures safe transfer of loads for the construction of cantilevered slabs.]( "VARIOKIT Engineering Construction Kit")
Countless possibilitiesBridge, tunnel and civil engineering solutions with core and functional system components.

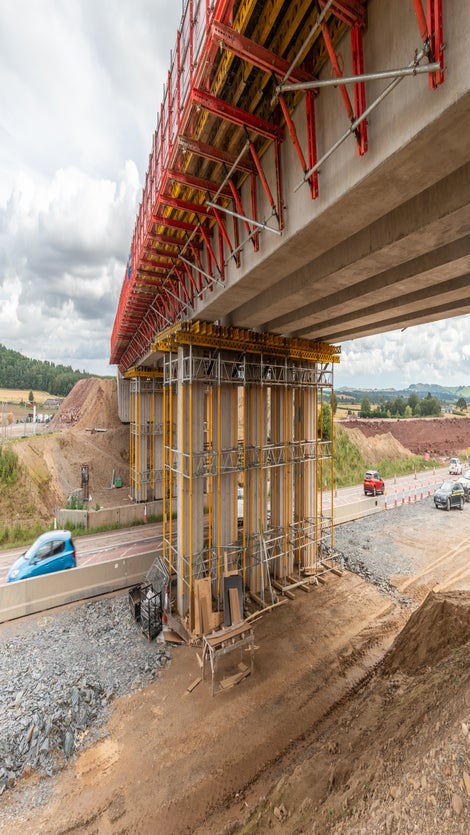

Project: A9 Lunarty to Pass of Burnham
-
![Raised formwork units comprised of system components from the VARIOKIT engineering construction kit support a PERI UP load-bearing scaffold. The heavy-duty spindles allow optimal adaptation to suit the inclined contact areas.]( "VARIOKIT Engineering Construction Kit")
Cost-effective solutionsHigh degree of efficiency due to rentable standard components and statically-optimized planning processes.
Project: Bank Station
Support Structures
With the VARIOKIT standard components, technically demanding trusses and load-bearing systems can be cost-effectively executed. In order to minimize on-site assembly times and maintain tight construction schedules, PERI also provides – if required – pre-assembled units to the construction site. Renting the components along with the assembly advantages makes VARIOKIT extremely economical, especially with short utilisation times.
- VST Heavy Duty Tower
- VRB Heavy Duty Truss Girder

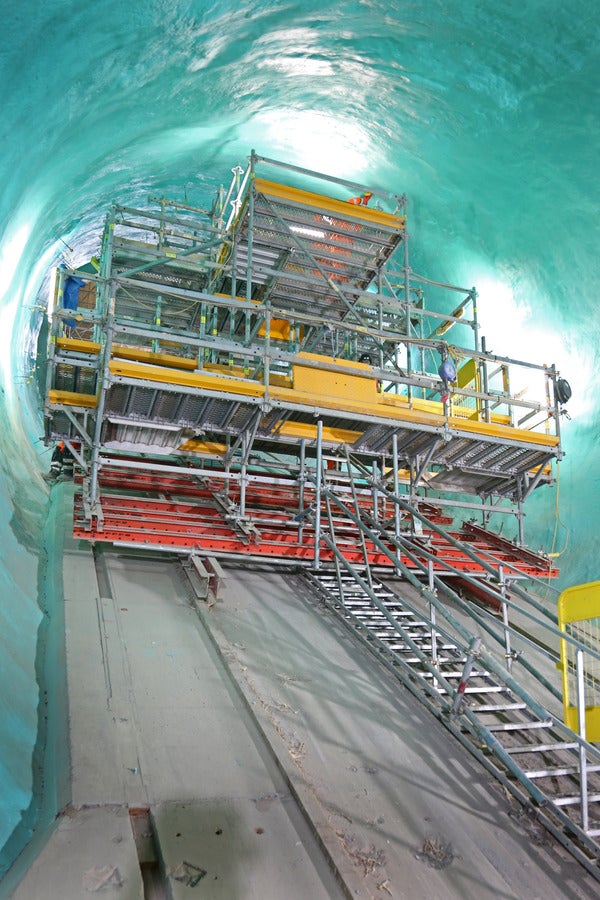

Tunnel Construction
With VARIOKIT system components, cost-effective tunnel formwork carriages can be realized which are precisely adapted to meet the needs of the respective job site. Requirements such as drive-through openings for trucks or single-sided wall formwork are easily fulfilled. Additional components for lifting, lowering and moving are likewise available in the rentable PERI portfolio as are safe working platforms and access means. Required technical accessories, e.g. concrete pump connections, complement the VARIOKIT solutions.
- VTC Tunnel Carriage
Bridge Construction
The VARIOKIT Engineering Construction Kit includes suitable system solutions for bridge superstructures and cantilevered parapets. The portfolio ranges from lightweight brackets to complete formwork carriage and equipment solutions.
- VCC Composite Formwork Carriage
- VCB Cantilever Bracket
- VARIOKIT Balanced Cantilever Equipment VBC
- VGK Cantilevered Parapet Bracket
- VGB Cantilevered Parapet Track
- VGW Cantilevered Parapet Carriage
With VARIOKIT core and system components, heavy-duty shoring towers and wide-span lattice girders can be systematically assembled. Also for other construction tasks where high loads are to be transferred, VARIOKIT is the optimal system. Providing the overall solution from one source ensures optimized processes during the course of the project. Through the connection possibilities for the PERI UP modular scaffold, secure access to all working areas and the required working surfaces is easily integrated.
- VST Heavy Duty Tower
- VRB Heavy Duty Truss Girder
