SB Stützbock: Zuverlässiges Betonieren von einhäuptigen Wänden bis 8,75 m Höhe.

SB Brace Frame

Reliable load transfer for single-sided forming operations up to 8.75 m high

SB Brace Frames transfer the fresh concrete pressure into the sub-structure and foundations during single-sided concreting of structural elements. It can be used with all PERI wall formwork systems. In addition, SB Brace Frames can be used as horizontal heavy-duty brackets.


SB Brace Frame in action

  • Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.
    Very versatile use

    with all PERI wall formwork as well as horizontal heavy-duty brackets.

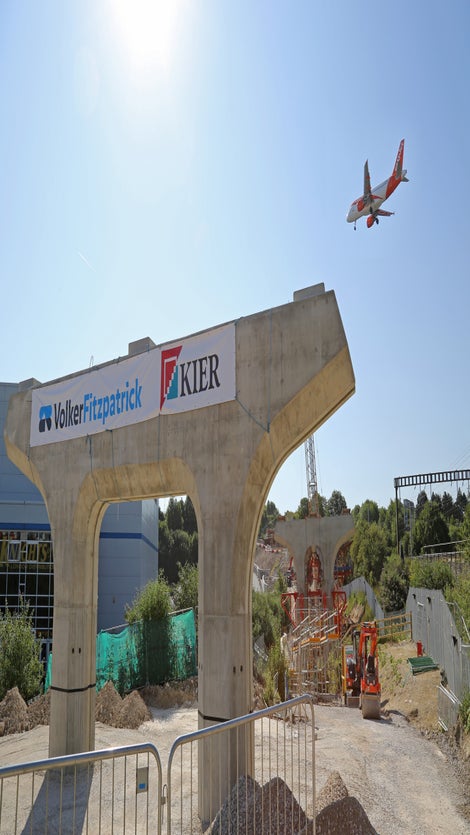

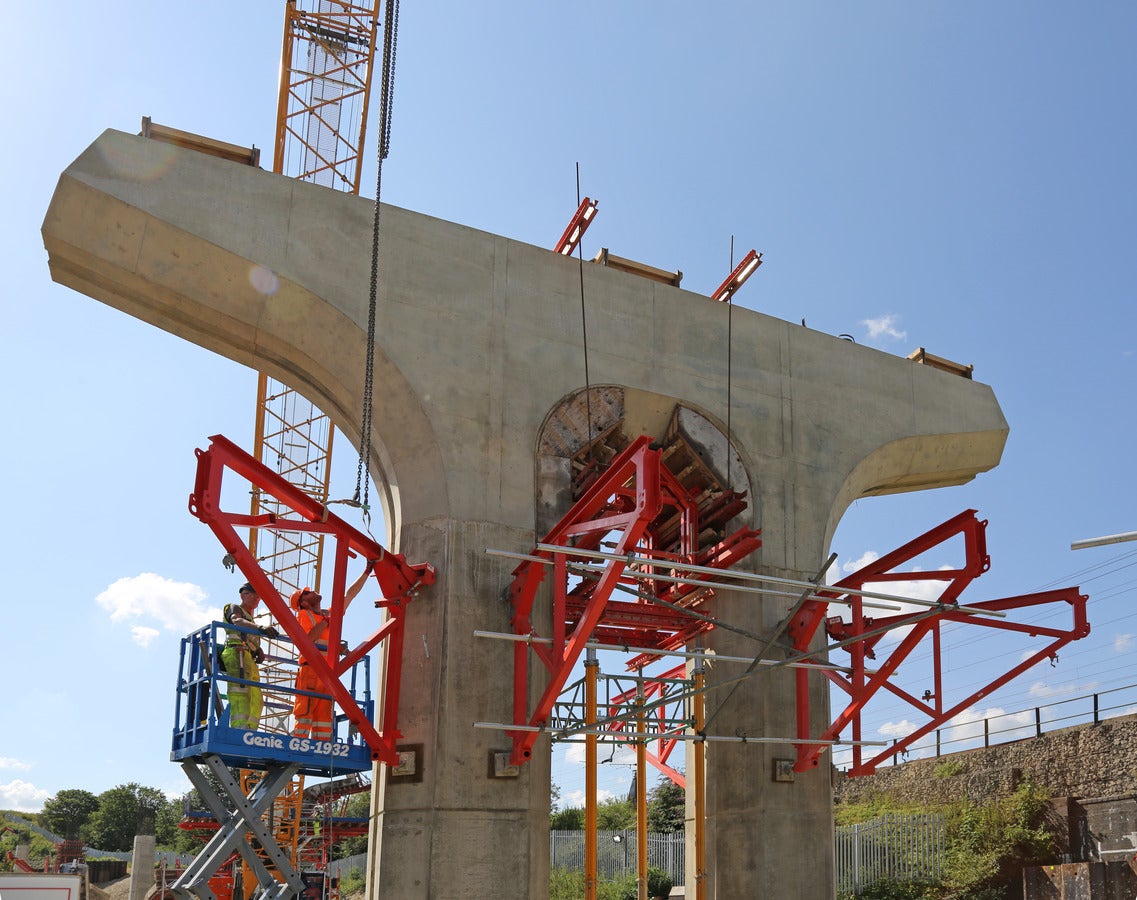

    Project: Luton DART Rail Link

  • Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.
    Quickly connected without additional components

    as all required connection parts are already mounted on the Brace Frame.

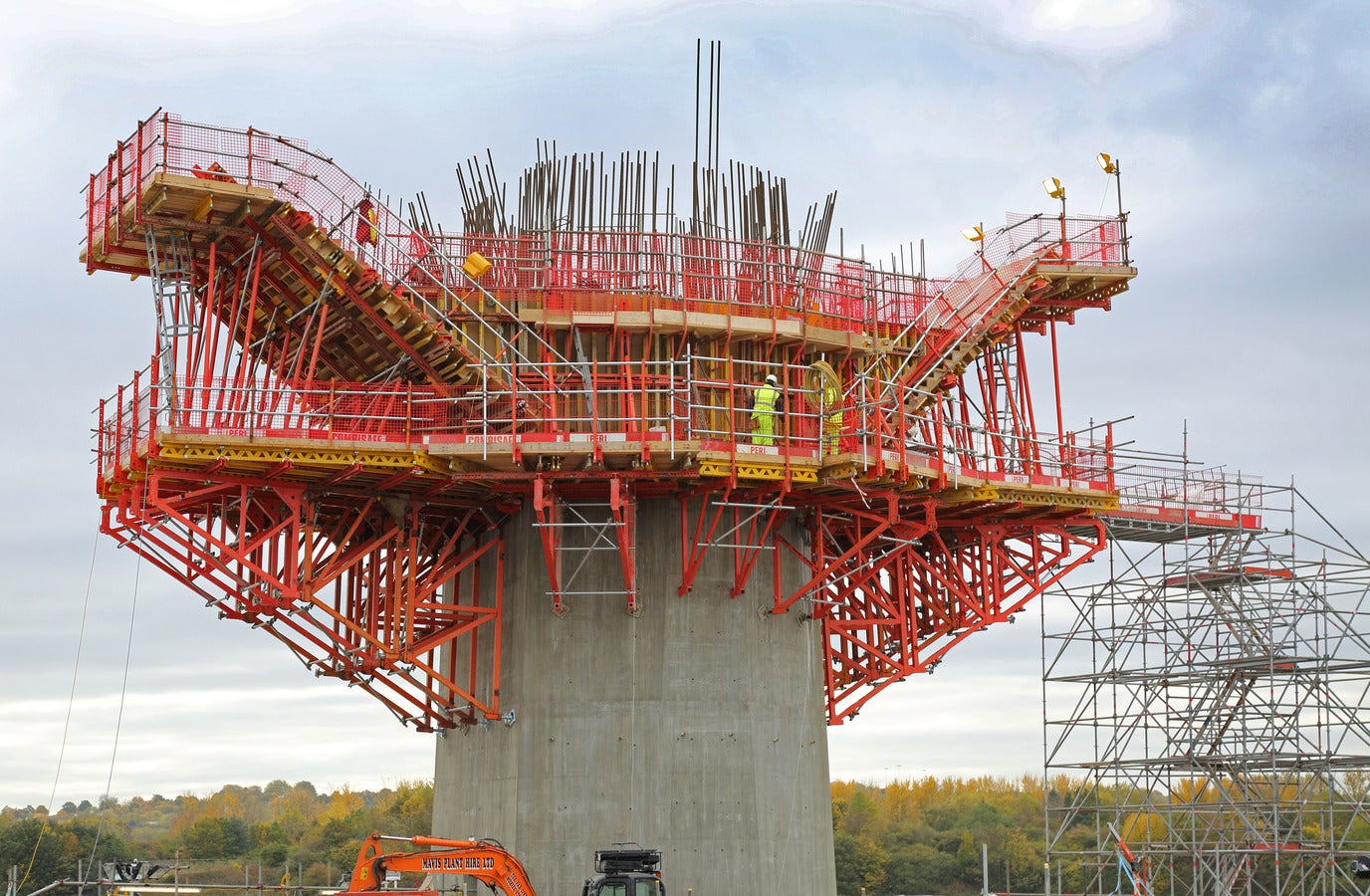

    Project: Mersey Gateway

  • Easy to transport through matching the individual component geometries to suit truck and container dimensions.
    Easy to transport

    through matching the individual component geometries to suit truck and container dimensions.

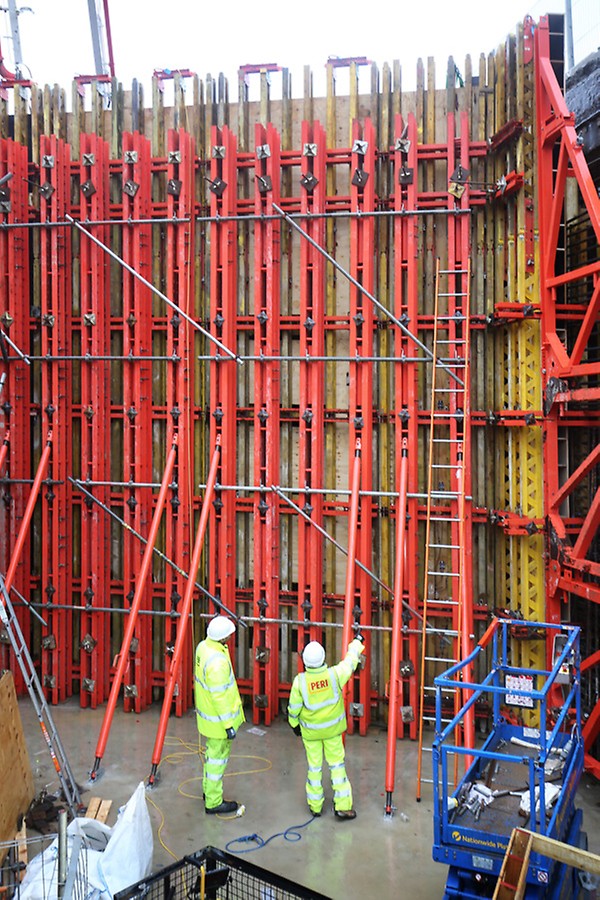

    Project: Regent Street Flyover

Product Data Sheet

Technical specifications
System type
Support Frame
Dimensions
Concreting height: 3.00 m to 8.75 m
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.

Technical specifications
System type
Support Frame
Dimensions
Concreting height: 3.00 m to 8.75 m
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
Show More
Show Less
