RUNDFLEX Circular Wall Formwork in action
-

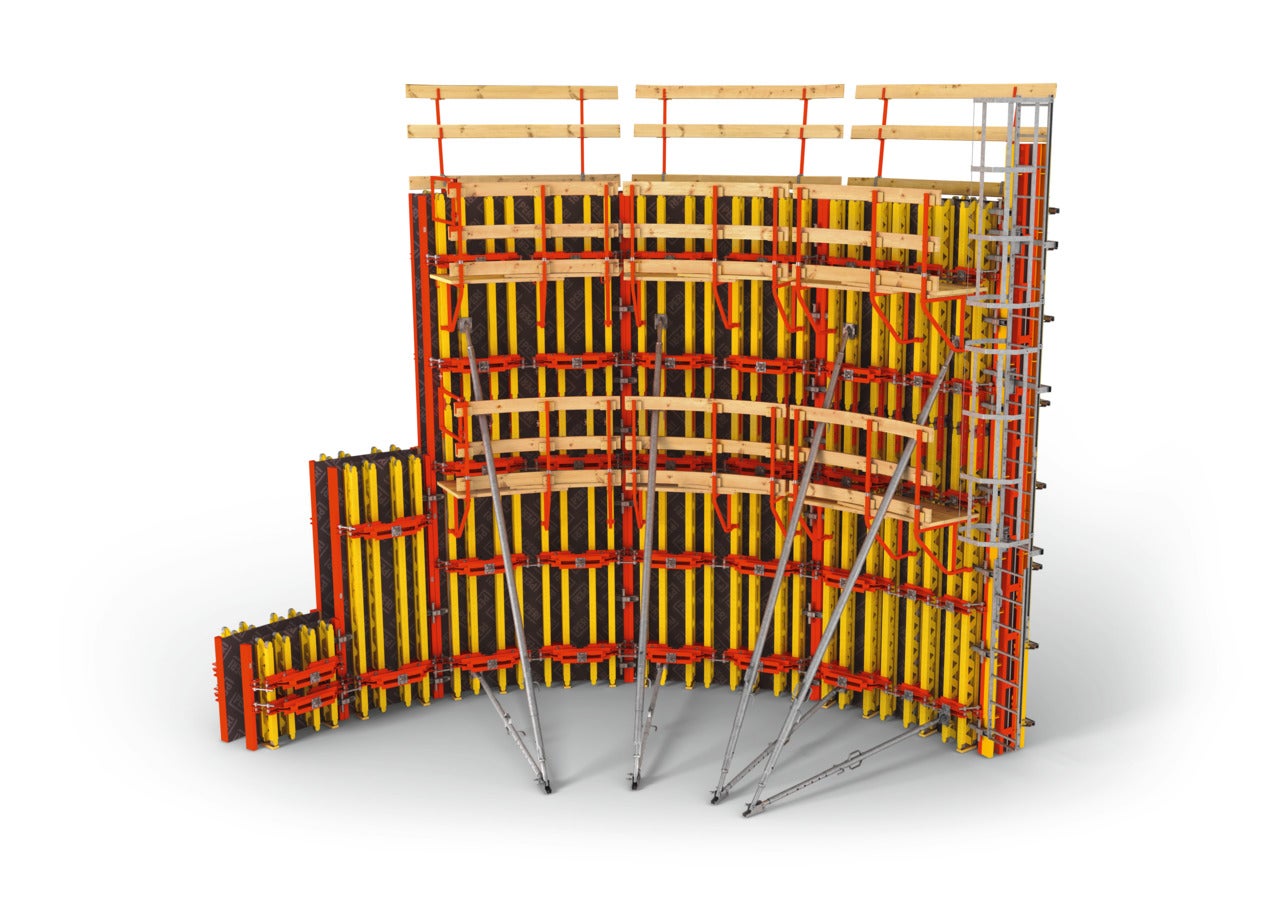

![3.60 m high RUNDFLEX formwork for construction of a sewage treatment plant with a radius of 13.76 m.]( "RUNDFLEX Circular Wall Formwork")
Less installation effortwith pre-assembled units and the proven BFD Alignment Coupler.
-

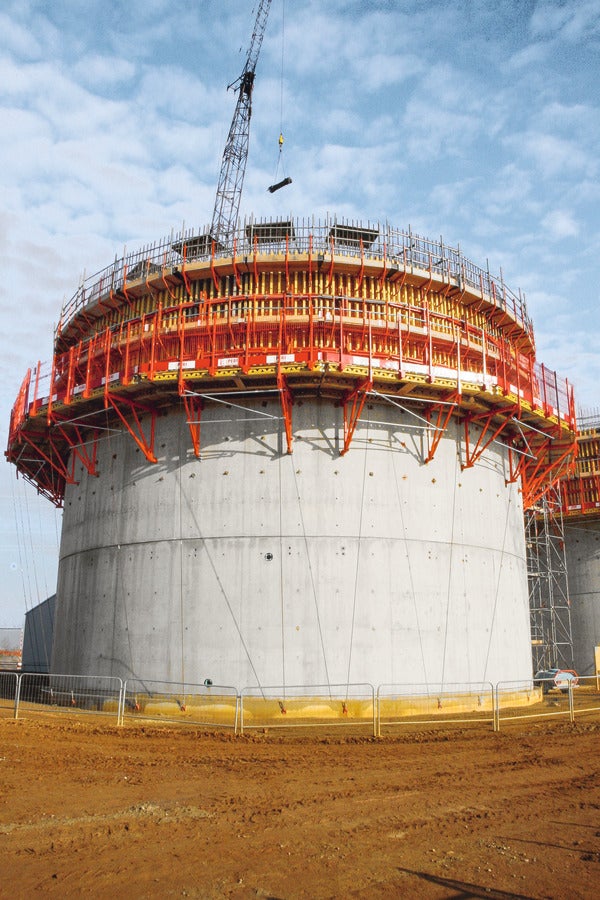

![through the flexible adjustment of wall internal radii of 1.00 m and larger]( "Especially variable")
Especially variablethrough the flexible adjustment of wall internal radii of 1.00 m and larger.
-

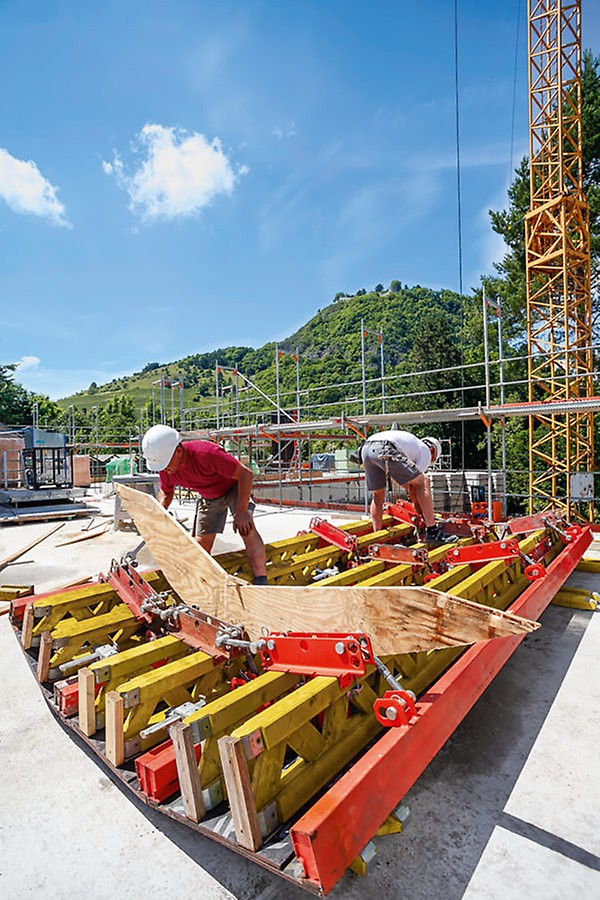

![Spindles are adjusted using the combi ratchet spanner SW24.]( "RUNDFLEX Circular Wall Formwork")
Fast adjustmentthrough a simple adjustment procedure by means of a template and spindles with self-cleaning hexagonal threads.
Product Data Sheet
System type
Panel Formwork
Dimensions
Element heights: 0.60 m | 1.20m | 1.80m | 2.40m | 3.00m | 3.60m,
Element widths inside: 0.72 m | 1.23m | 2.40m,
Element widths outside: 0.85 m | 1.28m | 2.50 m
Fresh concrete pressure
Permitted Fresh concrete pressure 60kN/m² Line 6, Table 3, Din 18202, Anchor share: from 0.54 anchors per m² wall area, Perm. Payload of the platform 150 kN/m², load class 2
Material
Formwork girders made of wood, spindles made of steel
Formlining
Elements for radii ≥ 4.00 m formwork: 21 mm, elements for radii ≥ 2.5 m formwork: 18 mm, elements for radii ≥ 1.00 m formwork: 2x 9 mm
Fulfilled standard
Row 6, Table 3, DIN 18202
Other
Cut radius templates available. On request, the RUNDFLEX elements can also be ordered with a preset radius. The RUNDFLEX can also be used "horizontally" for special arches with variable radii.
