GT24 Girder in action
-

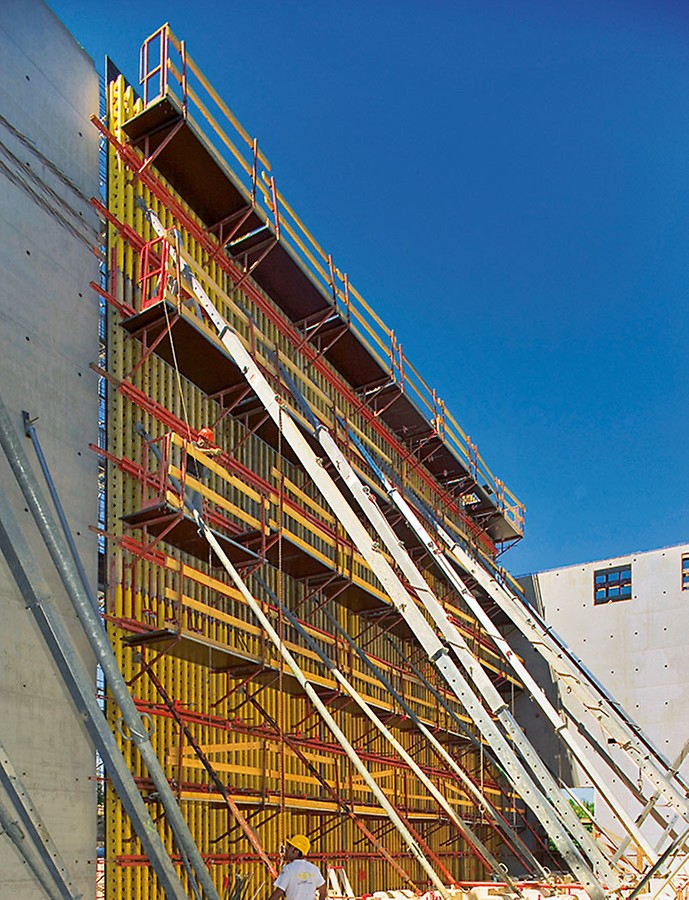

![GT 24 formwork girder - No matter how high, the GT 24 makes it possible - until 17,80 m.]( "GT 24 formwork girder - no matter how high")
DurableRobust design, girder nodes with mini dovetail jointing, no trapped pockets of moisture.
-
![GT 24 Schalungsträger: The versatile lattice girder with high load-bearing capacity]( "GT 24 Formwork Girder")
High load-bearingAs lattice girder with a 24 cm overall height for heavy loads and wide spans.
-

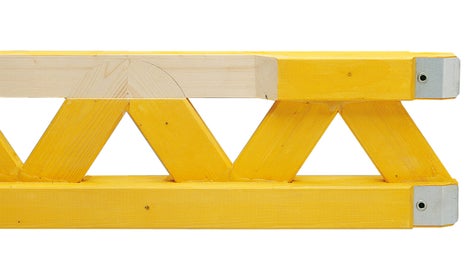

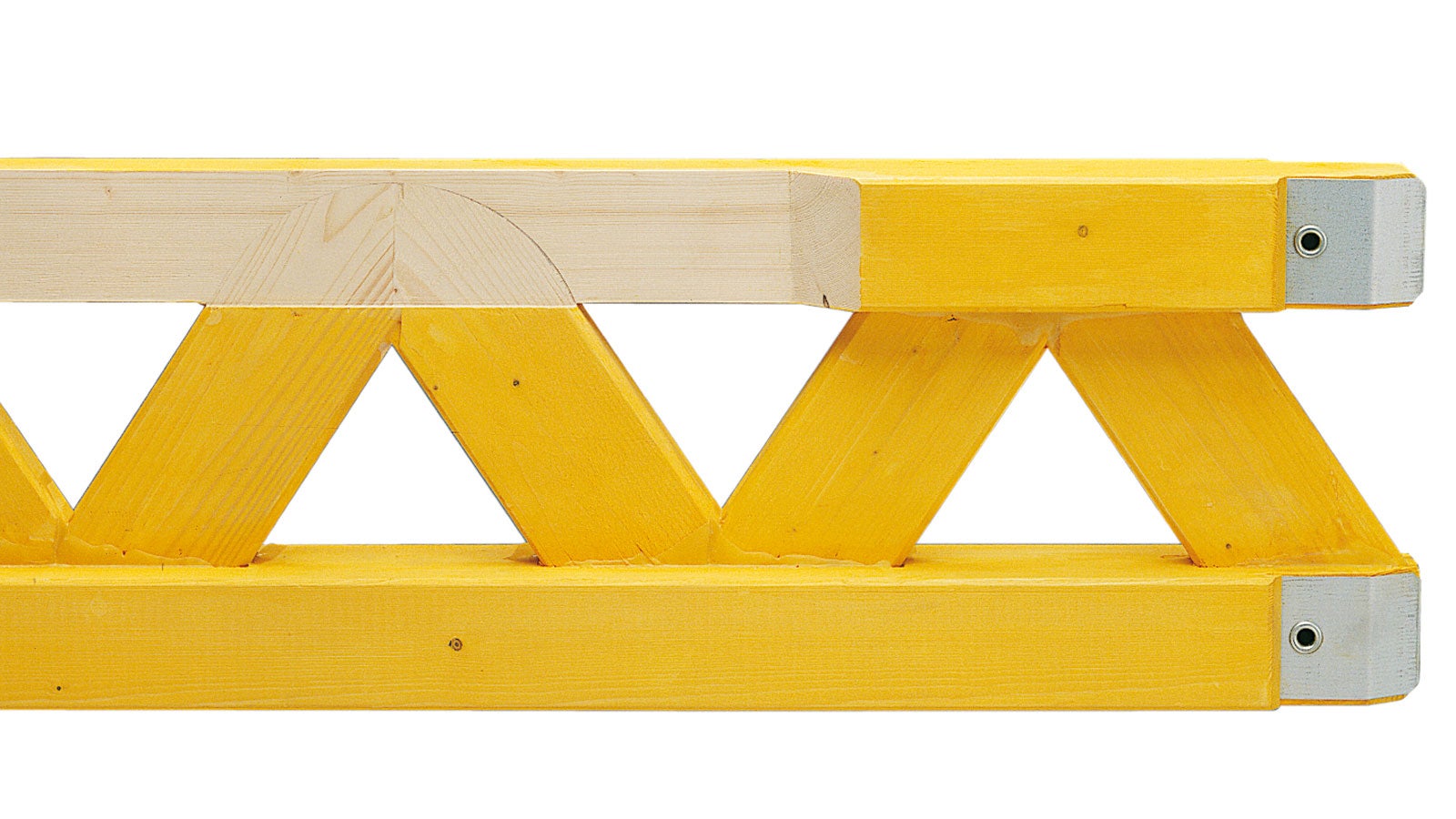

![GT 24 formwork girder: The struts penetrate the chords along the whole cross-section. There are practically no cavities which could collect and hold moisture.]( "GT 24 formwork girder - The struts penetrate the chords along the cross-section")
CompatibleEasy connection of site accessories through the latticework construction.
Product Data Sheet
System type
Wooden Formwork Beam
Dimensions
Height: 24 cm,
Spread: 8 cm
Weight
5,4 kg/m
Load
Permissible shear force: 13,0 kN,
Permissible bending moment: 7,0 kNm,
Allowed bearing strength: 28 kN
