FB 180 Folding Platform in action
-

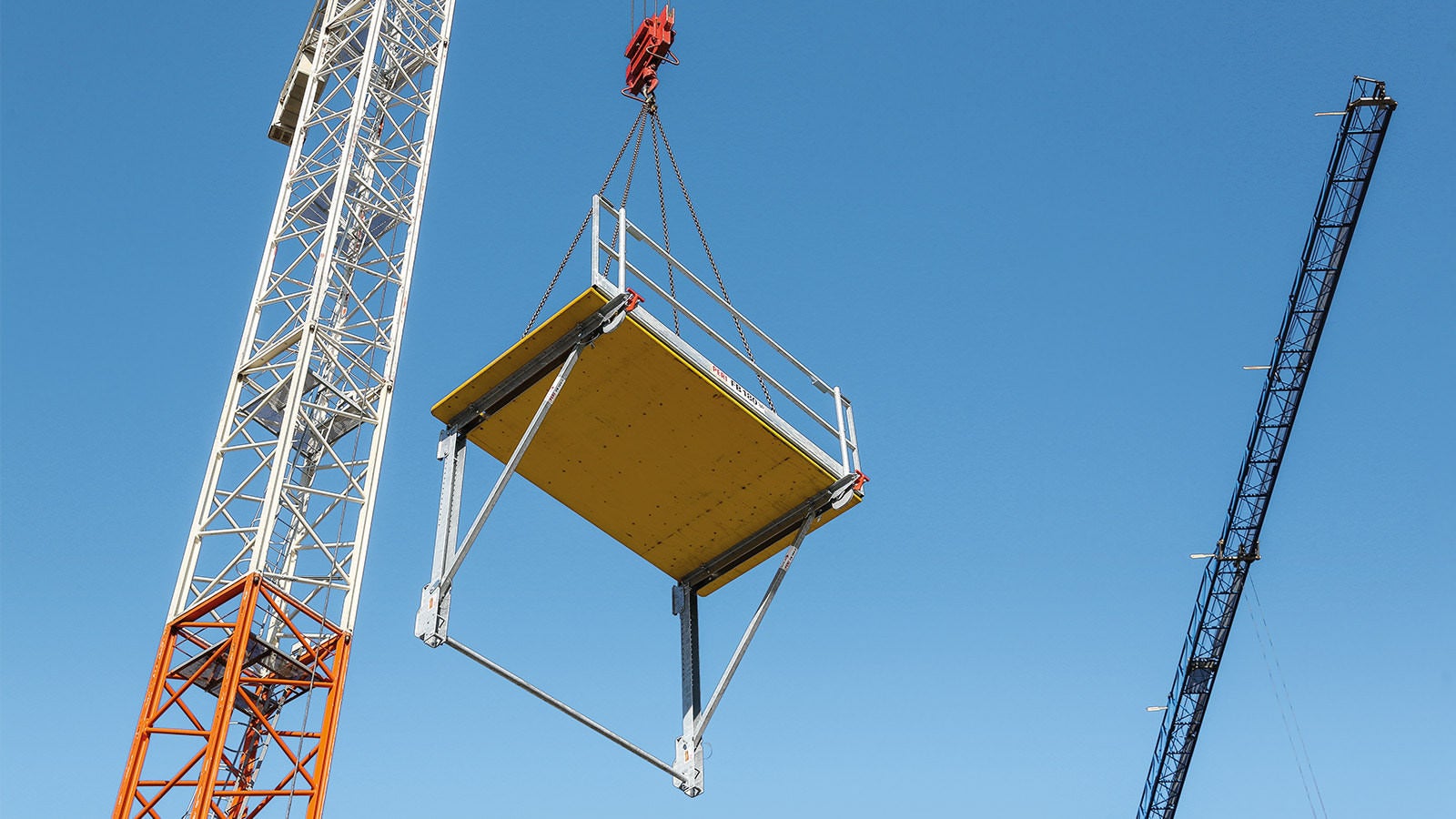

![The FB 180 folding platform is delivered fully assembled to the jobsite.]( "FB 180 Folding Platform System")
Simple application
little effort is required and fast assembly even with complicated ground plans.
-
![The Folding Corner Platform can be used on both the right and left sides. It is delivered as one unit together with the Corner Platform Frame.]( "FB 180 Folding Platform System")
Advantageous for planning, utilization and provisiononly 3 different platform types and always identical anchor spacings.
-

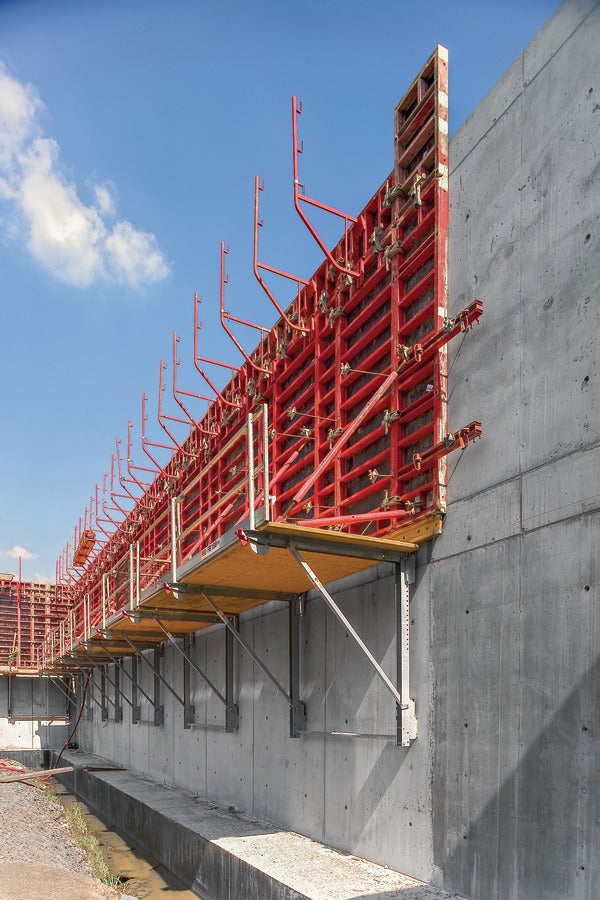

![can be used for both the left and right sides; converted in only a few assembly steps to roof edge safety scaffold.]( "Corner Platform")
Efficient solutions
a Corner Platform can be used for both the left and right sides; converted in only a few assembly steps to a roof edge safety scaffold.
-

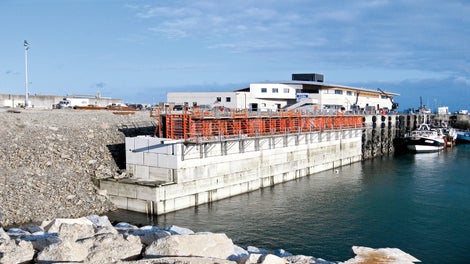

![compensation areas as well as internal and external corners without special platforms possible.]( "Uncomplicated use with every ground plan")
Uncomplicated use with every ground plancompensation areas as well as internal and external corners without special platforms possible.
Product Data Sheet
Dimensions
Height: formwork scaffold for the closing formwork up to a height of 5.40 m; with raised railing also as roof safety scaffold,
Platform surface: stage length 300 cm; Stage width 180 cm (standard stage)
Fulfilled standard
Working scaffold according to DIN EN 12811 or protective scaffold according to DIN 4420
Load
Allowed bearing strength: Permissible support force: load class 4 (300 kg/m²) when using main, intermediate and corner platforms; Load class 5 (450 kg/m²) for special use only with main platforms
Other
Support extensions with adjustable pressure point for bridging building openings
