CADENAS BIM component catalogue

Models of PERI products for planning the formwork and scaffolding solution in the familiar CAD software

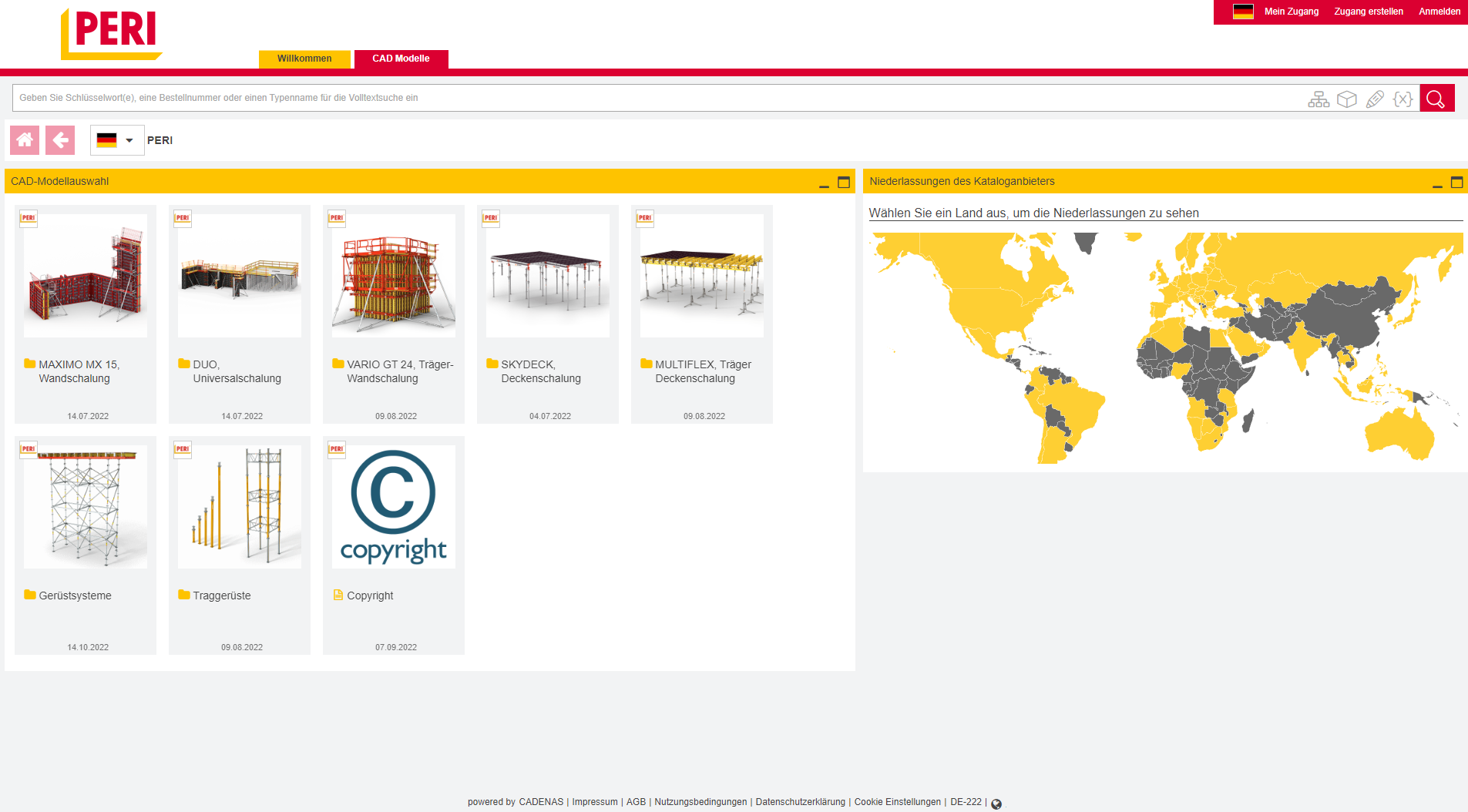

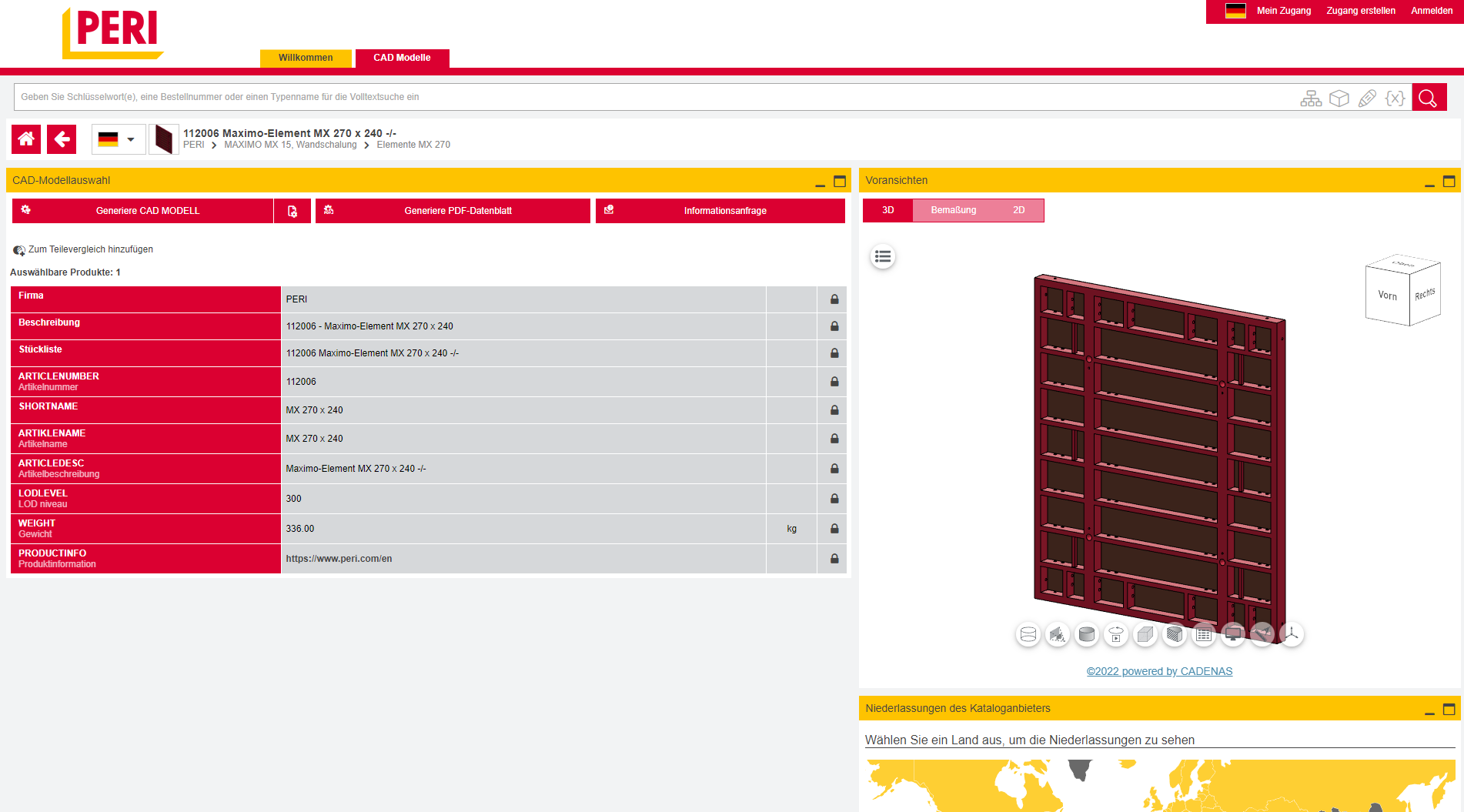

The CADENAS BIM catalog includes more than 700 PERI articles from the DUO, MAXIMO, SKYDECK, PERI UP FLEX, VARIO and MULTIFLEX systems that allow full integration with both standard CAD platforms and more advanced BIM tools. The components have all required BIM information and can be exported in different file formats and used in more than 100 CAD programs, so that you can always work and interact within your projects with all involved teams using the same up-to-date product information.

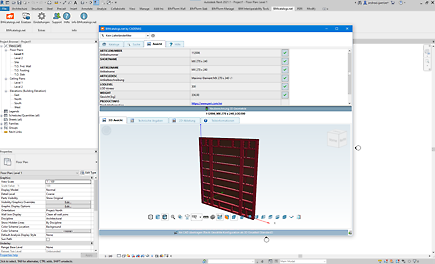

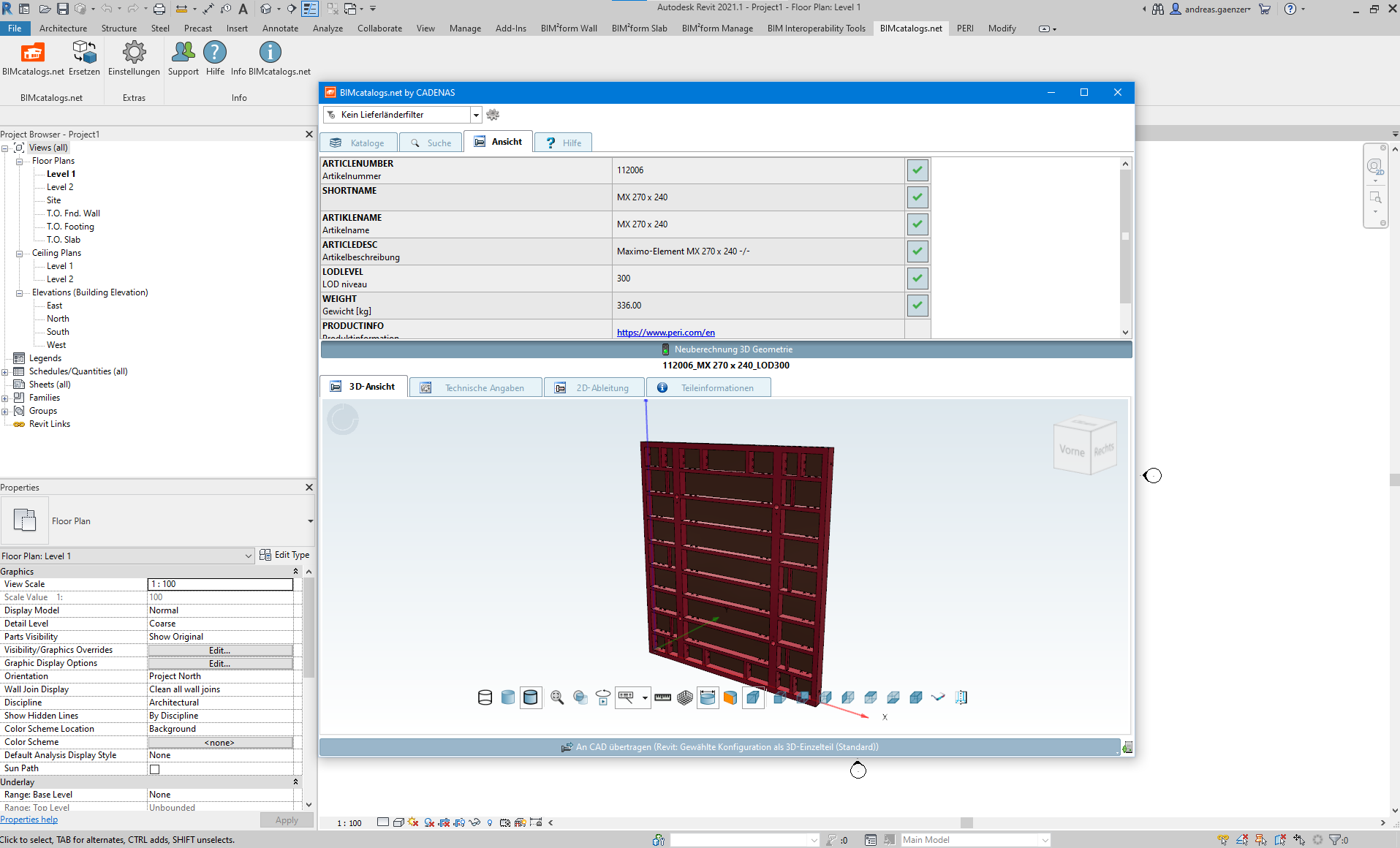

All components are available free of charge. For users having Revit®, AutoCAD®, ARCHICAD®, ALLPLAN® or Tekla® as their CAD system, the component library can also directly be accessed via the free available 3Dfindit plugin within their own application. With just a few clicks, the required CAD planning components can thereby directly be integrated into an existing construction without leaving the respective CAD system.
