3-S Panels

The traditional formwork panel

The 3-S panel is the traditional formwork panel, mainly used in bridge construction in Europe. It is used both for walls and slabs, and the concrete finish shows a timber structure. The inherently stable panel has a melamine resin coating and is manufactured using fully exterior glue, giving it water and weather resistance in accordance with EN13353 (SWP/3).

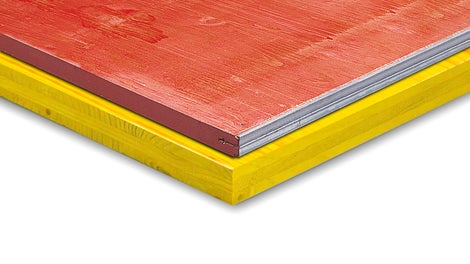

The standard form used in the UK ranges from 1.5 m to 2.5 m in length x 500mm width in 21mm thickness. 3-S panels are available in Yellow (without edge protection) or Red/Brown E-profile (with front-edge aluminium edge protection profiles for improved stability).

Thicker panels (27mm) and large format panels are also available.

Extend the life span of your 3-S Panels

The panels are precisely sized and dimensionally stable. Their convenient, lightweight design helps save both time and costs. With proper on-site handling and care, 3-S panels offer a long-lasting service life.

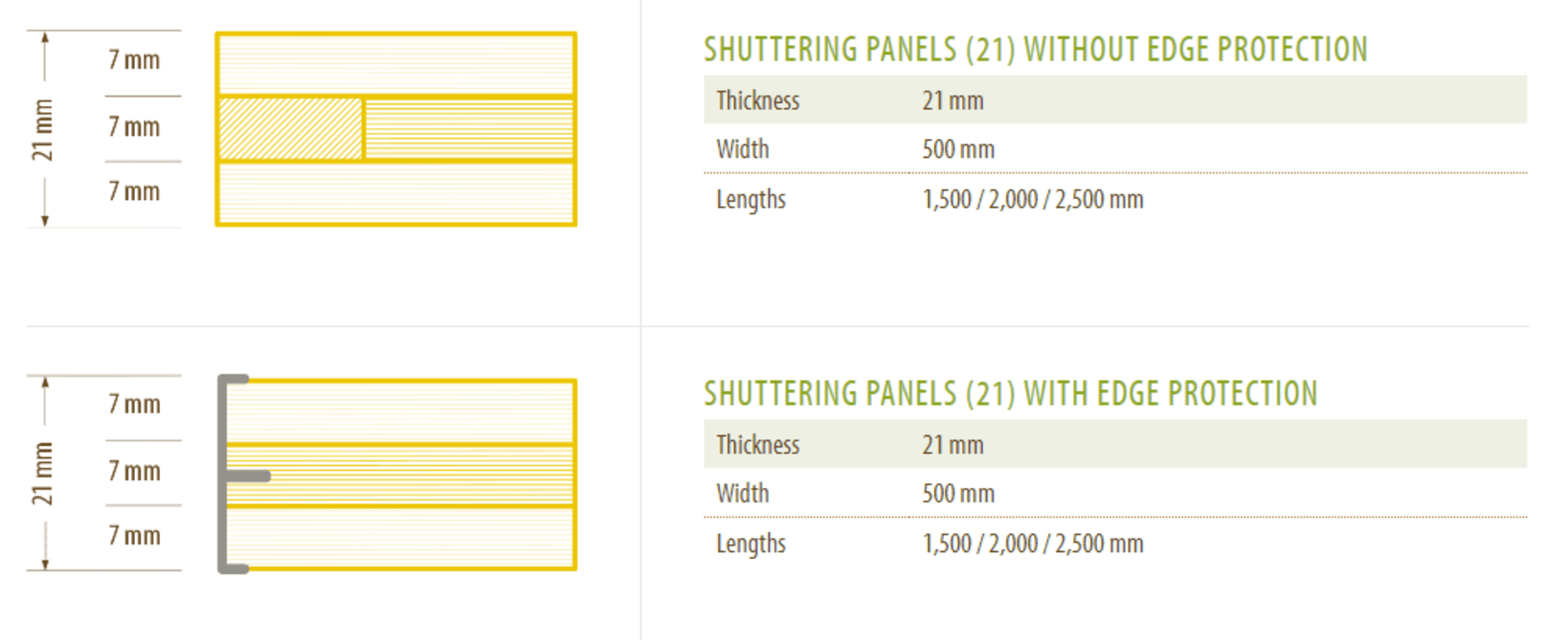

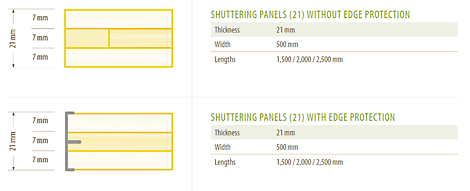

Product Data Sheet

Nominal thickness	Format	Weight	Packaging unit
21 mm	1500 x 500 mm Yellow	9,64 kg/m²	50
21 mm	2000 x 500 mm Yellow	9,64 kg/m²	50
21 mm	2500 x 500 mm Yellow	9,64 kg/m²	50
21 mm	1500 x 500 mm Red E-profile	9.87Kg/m²	50
21 mm	2000 x 500 mm Red E-profile	9.87Kg/m²	50
21 mm	2500 x 500 mm Red E-profile	9.87Kg/m²	50

Interested in using 3-S Panels for your next project?

Call us on 01277 582042 to discuss your requirements further.
